| Quantidade de pedido mínimo: | 1 |
Sombra:

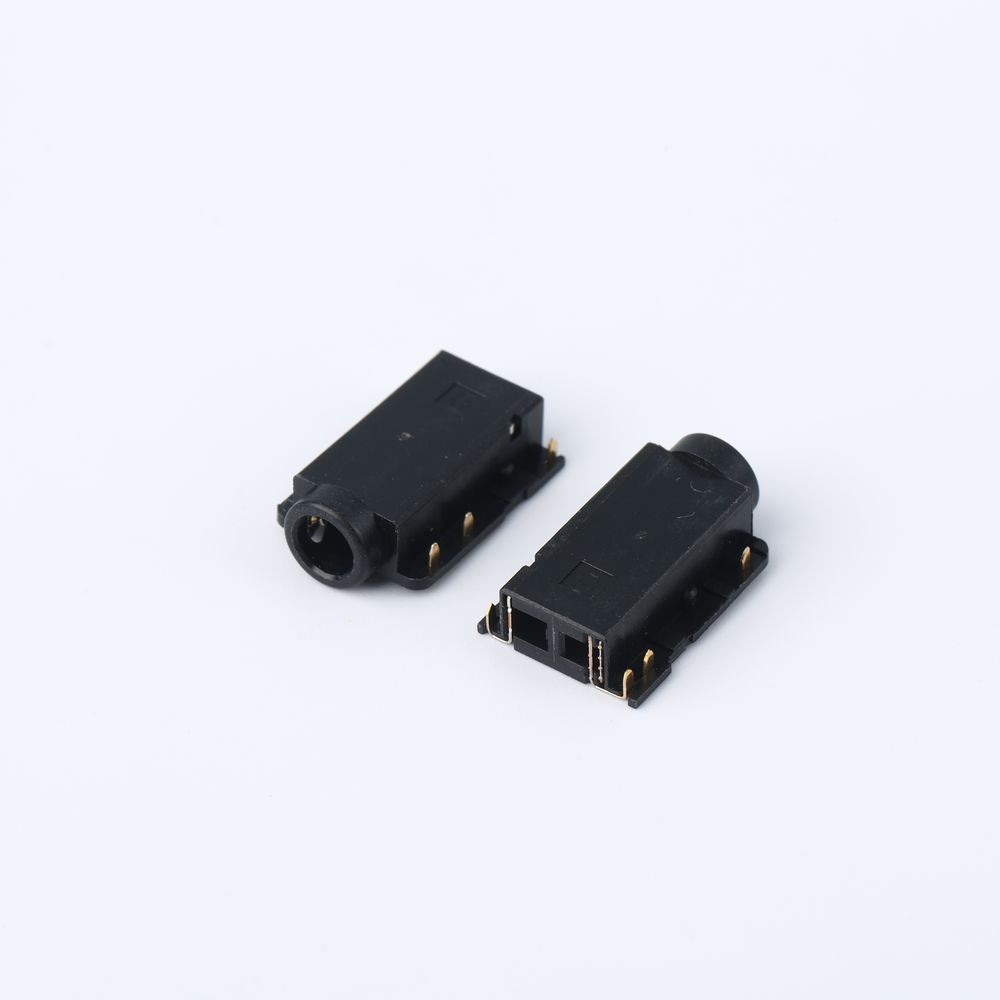

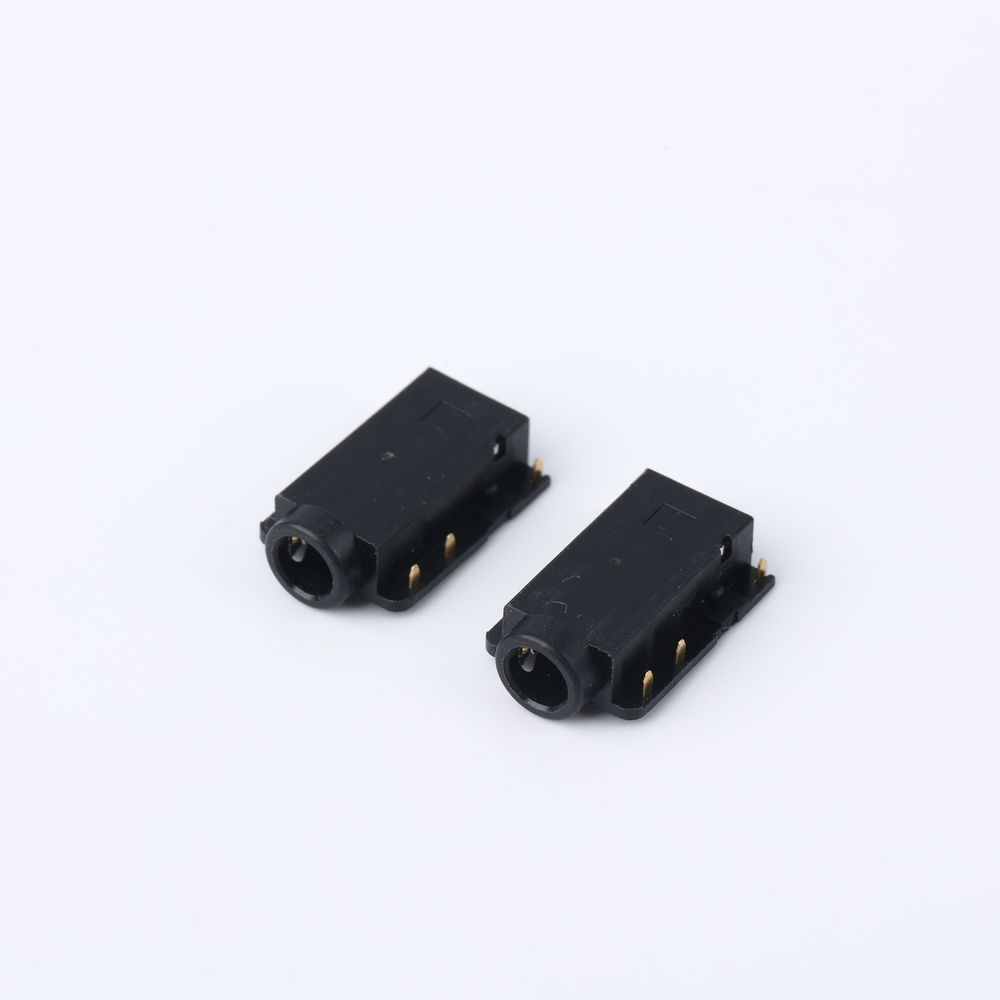

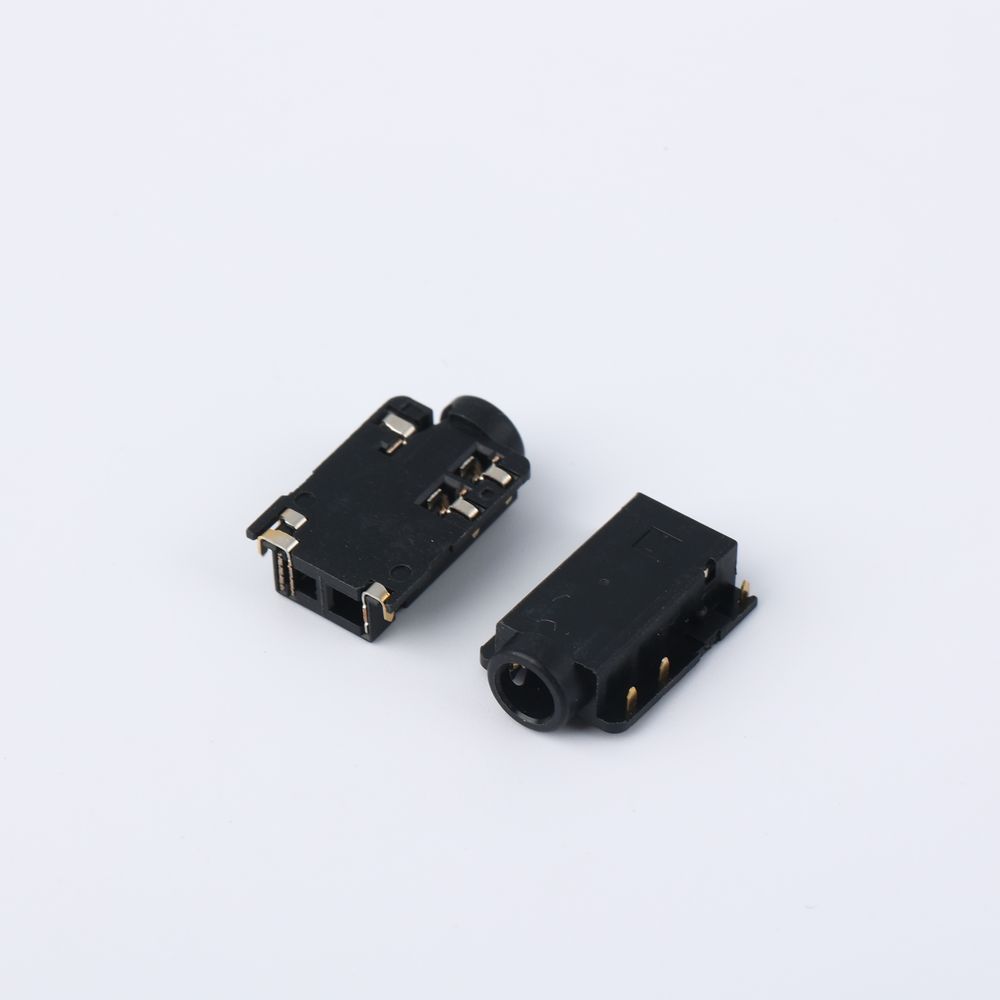

Modelo: AAPJ+3165A+ABK7A ∅3.5mm phone jack CH=-1.25
marca: Yifeng
| Baixar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | PA10T UL94V-0 BLACK |
| INSULATOR: | PA10T UL94V-0 BLACK |
| SHUNT SPRING: | C5210R T=0.2mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL UNDERPLATED |
| TRANSFER SPRING: | C5210R T=0.2mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL UNDERPLATED |
| EARTH SPRING 1: | C5210R T=0.2mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL UNDERPLATED |
| TIP SPRING 2: | C5210R T=0.2mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL UNDERPLATED |
| RING SPRING 3: | C5210R T=0.2mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL UNDERPLATED |
| CURUENT RATING: | DC 1.0A MAX |
| VOLTAGE RATING: | DC 30V |
| CONTACT RESISTANCE: | 50mΩ MAX INITIAL, 100mΩ MIN AFTER LIFE TEST |
| INSULATION RESISTANCE: | 100mΩ MIN AT 500VDC |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500V AC FOR 1 MINUTE |
| INSERTION FORCE : | INITIAL AND AFTER 5 INSERTION CYCLES: 5~22N, AFTER 5000 INSERTION CYCLES: 4~22N |
| WITHDRAWAL FRCE : | INITIAL AND AFTER 5 INSERTION CYCLES: 5~20N, AFTER 5000 INSERTION CYCLES: 4~20N |
| OPERATING LIFE: | 5000 CYCLES MIN |
