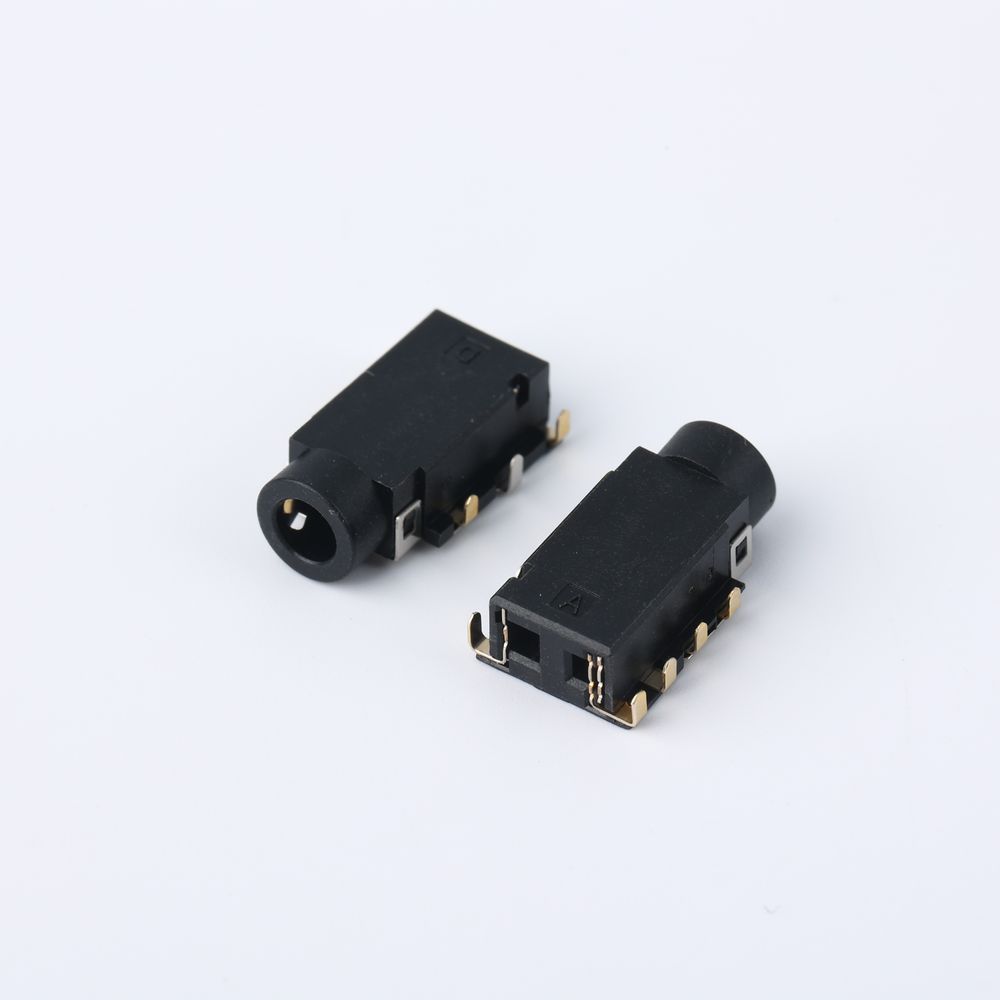

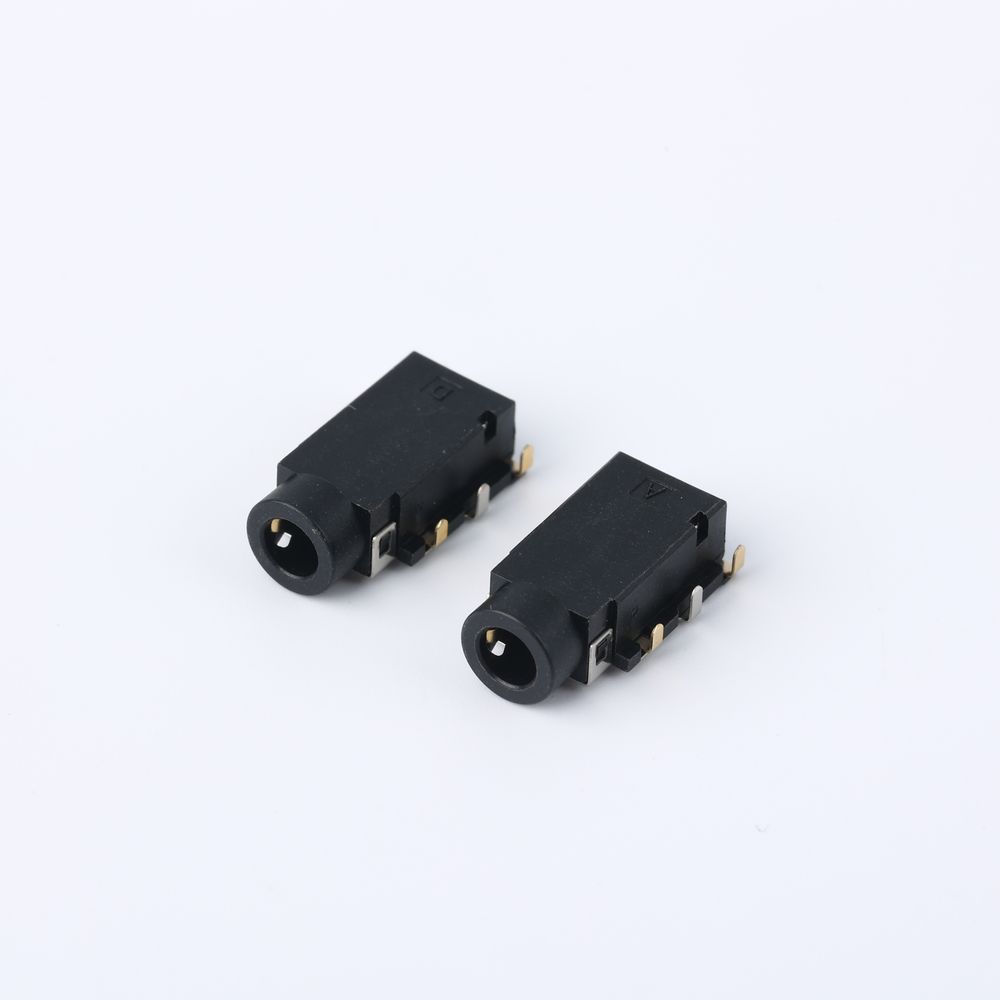

Modelo: AAPJ+J3C07+G122Z ∅3.5mm phone Jack CH=-1.4
marca: Yifeng
| Baixar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | HIGH TEMP BLACK |
| INSULATOR: | HIGH TEMP BLACK |
| SHILD SHELL: | PHOSPHOR BRONZE T=0.20mm, WELDING NI 50U'' MIN OVERALL |
| MAKE SPRING: | PHOSPHOR BRONZE T=0.20mm, AU G/F ON CONTACT AREA, 50U'' NICKEL ALL OVER |
| TRANSFER SPRING: | PHOSPHOR BRONZE T=0.20mm, AU G/F ON CONTACT AREA, 50U'' NICKEL ALL OVER |
| TIP SPRING : | PHOSPHOR BRONZE T=0.20mm, AU 1U'' MIN ON CONTACT AU G/F MIN ON SOLDER TAIL AREA, 50U'' NICKEL ALL OVER |
| RING SPRING 2: | PHOSPHOR BRONZE T=0.20mm, AU 1U'' MIN ON CONTACT AU G/F MIN ON SOLDER TAIL AREA, 50U'' NICKEL ALL OVER |
| RING SPRING 3: | PHOSPHOR BRONZE T=0.20mm, AU 1U'' MIN ON CONTACT AU G/F MIN ON SOLDER TAIL AREA, 50U'' NICKEL ALL OVER |
| EARTH SPRING 1: | PHOSPHOR BRONZE T=0.20mm, AU 1U'' MIN ON CONTACT AU G/F MIN ON SOLDER TAIL AREA, 50U'' NICKEL ALL OVER |
| CURUENT RATING: | 0.5AMP |
| VOLTAGE RATING: | 12VAC RMS |
| CONTACT RESISTANCE: | 50mΩ MAX INITIAL, 100mΩ MIN AFTER LIFE TEST |
| INSULATION RESISTANCE: | 1000mΩ MIN, 500V DC INITIAL, 100mΩ MIN, 500VDC AFTER HUMIDITY TEST |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500V AC RMS 50(60) HZ 1 MINUTE |
| INSERTION FORCE : | 3.0kgf MAX |
| WITHDRAWAL FRCE : | 0.3kgf MIN |
| OPERATING LIFE: | 5000 CYCLES MIN |
| OPERATING TEMPERATURE: | -30℃~+80℃ |
