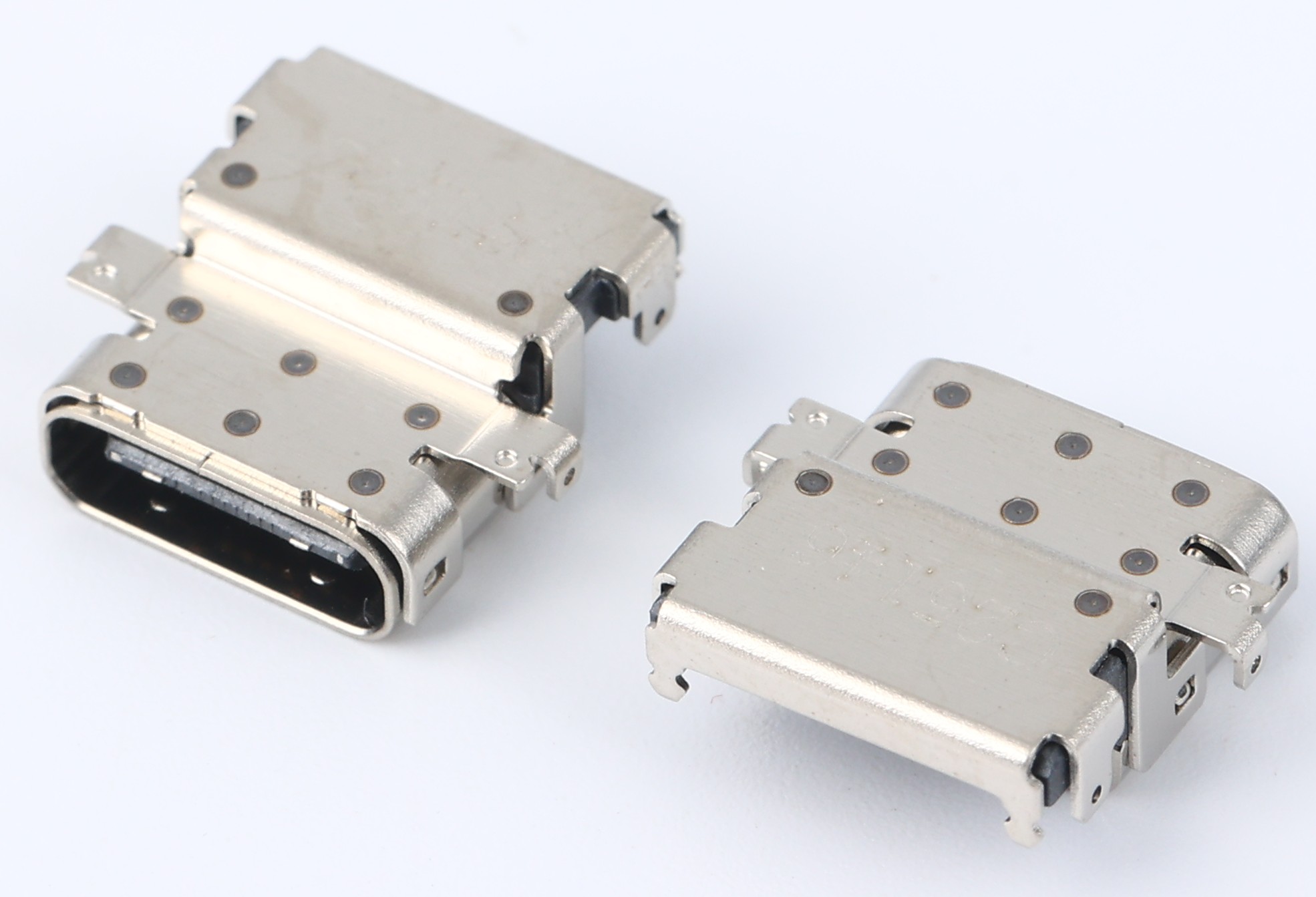

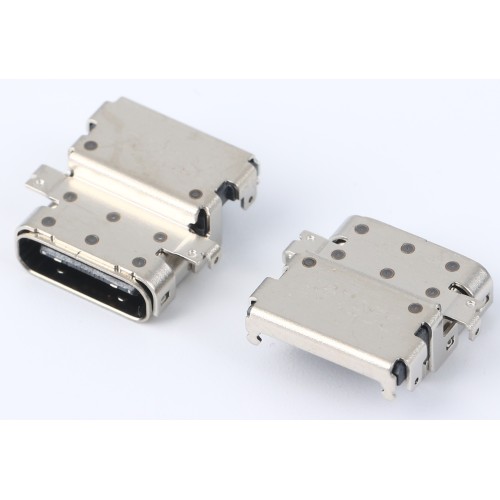

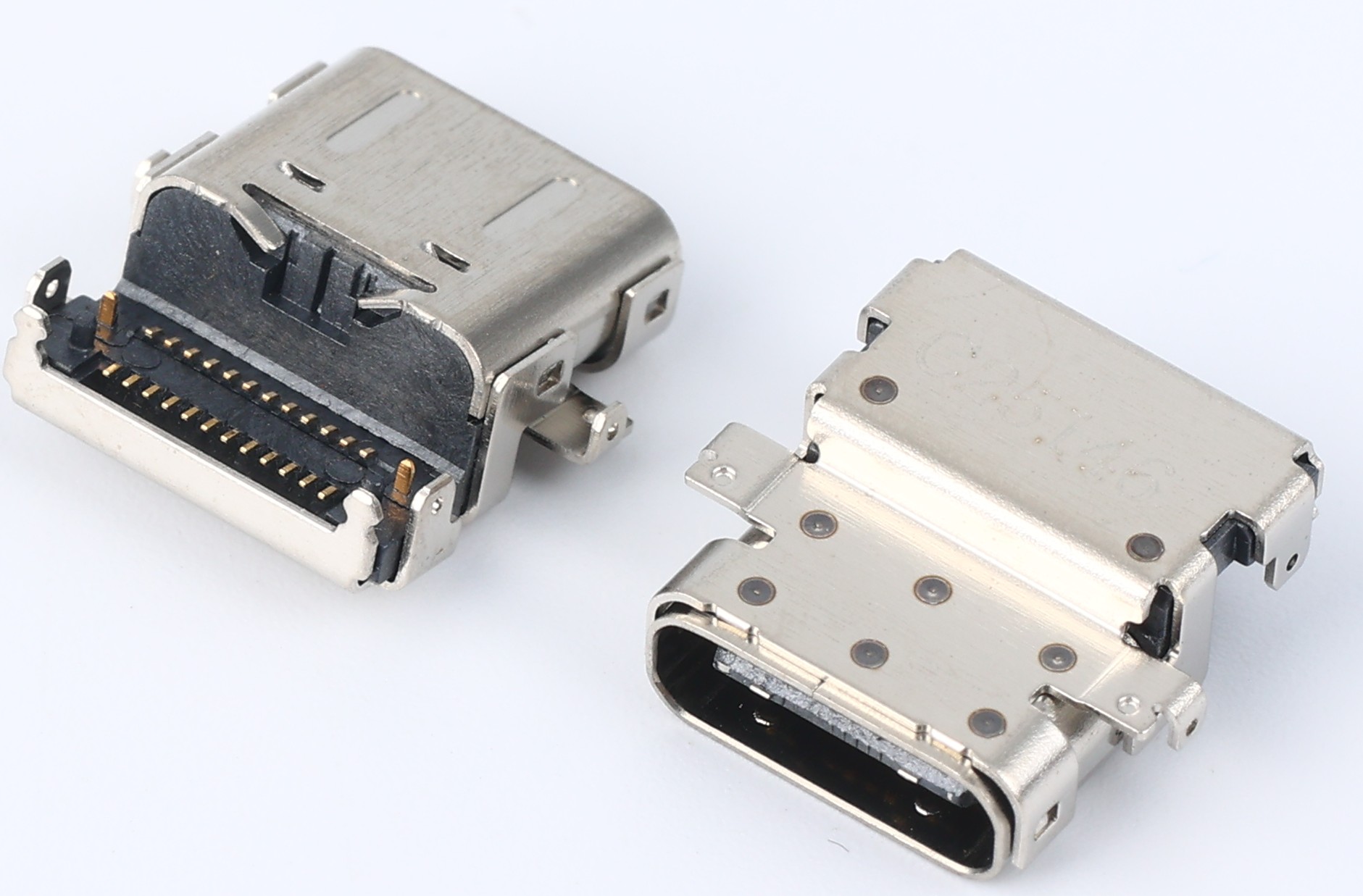

Modelo: AUS+UTC+172 Typec C DUAL SMT R/A
marca: Yifeng
| Baixar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | LCP E471I, UL94 V-0 |
| CONTACT: | C7025 R-H T=0.12mm |
| Pd/Ni 25u” MIN. & GOLD PLATED 5u” MIN ON CONTACT AREA | |
| G/F PLATING ON SOLDER AREA | |
| Ni 80u” MIN. UNDER PLATED OVER ALL | |
| OUT SHELL: | SUS304 1/2H T=0.25mm, Ni 50u” MIN. UNDER PLATED OVER ALL |
| ELECTRICAL: | |
| CURRENT RATING: | |
| 5A FOR VBUS PINS(A4, A9, B4, B9) | |
| 1.25A FOR GRN PINS(A1, A2, B1, B2) | |
| 0.25A FOR OTHER PINS | |
| VOLTAGE RATING: | 20V |
| MECHANICAL: | |
| INSERTION: | 5~20N |
| EXTRACTION: | 14~20N (INITIAL), 8~20N (AFTER ENVIRONMENT TEST) |
| DURABILITY: | 10000 CYCLES |
| TEMPERATURE RANGE: | -55℃ ~ +85℃ |
