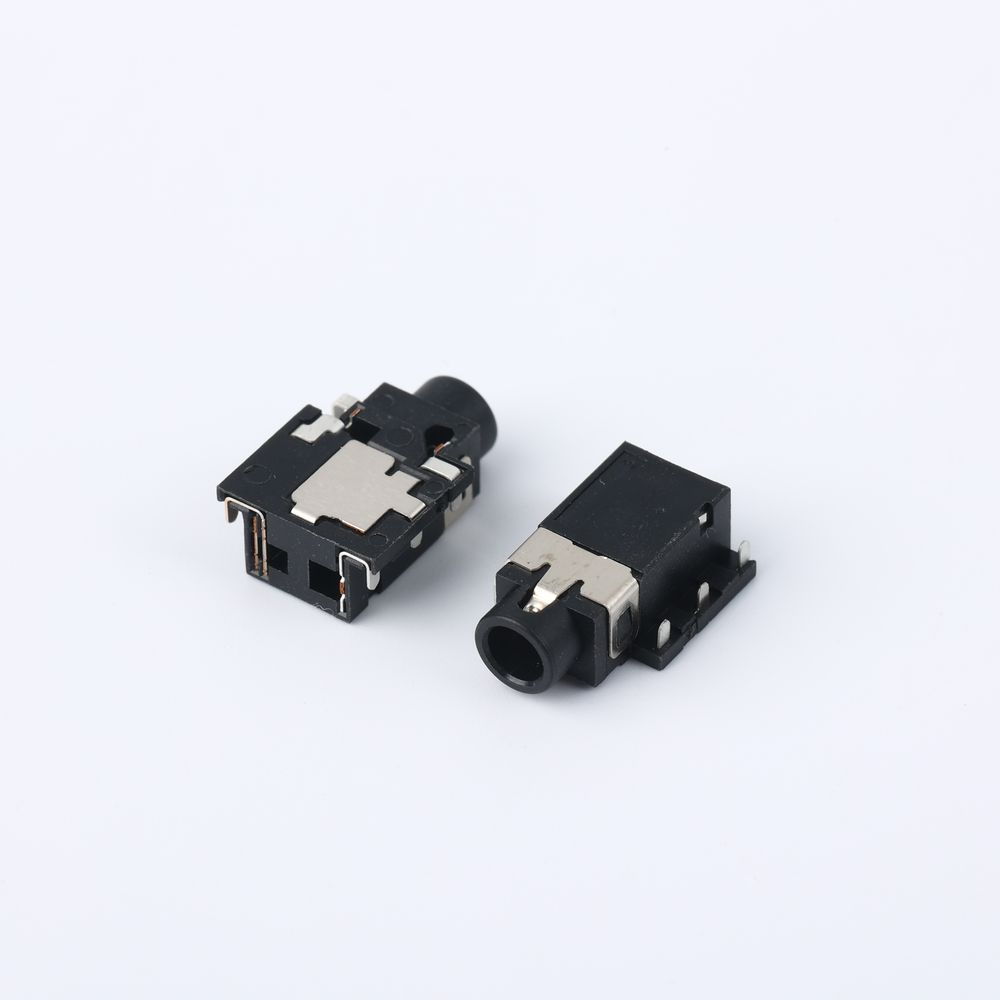

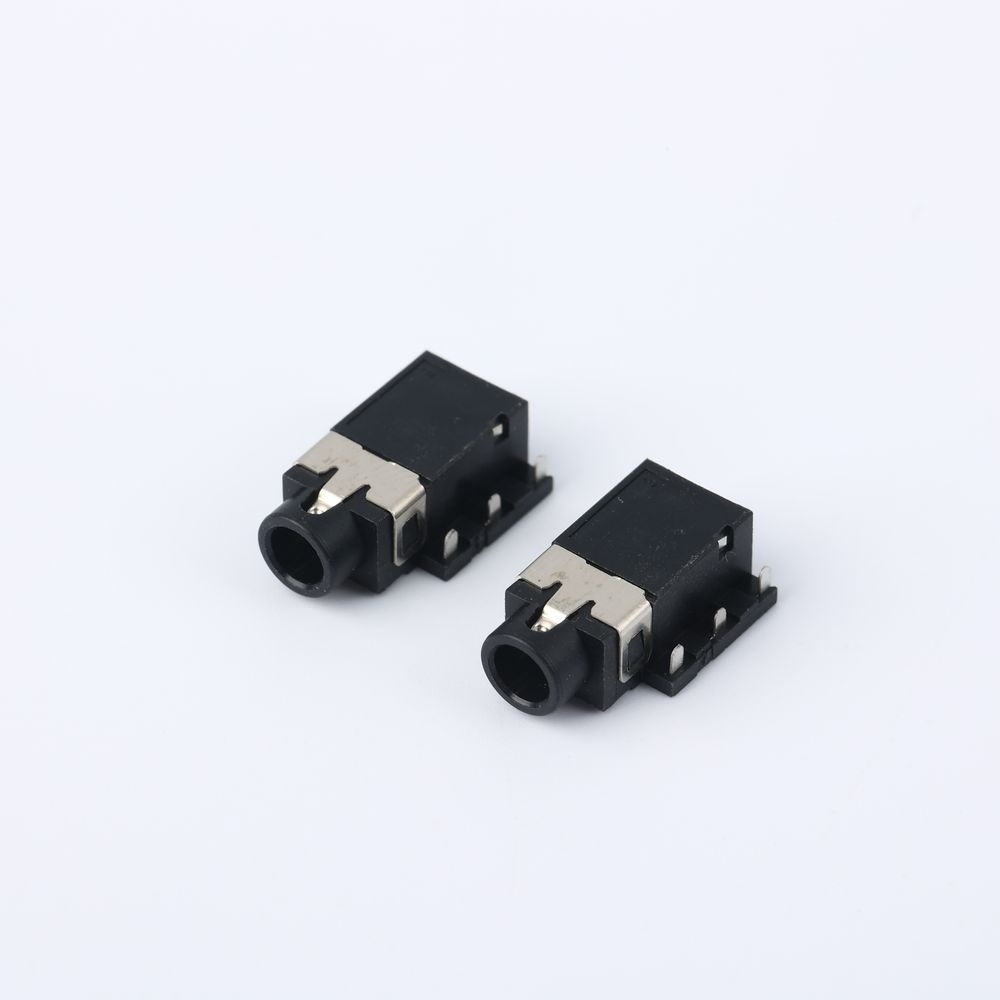

Modelo: AAPJ+3148H+ABK7A ∅3.5mm phone Jack CH=-1.85mm
marca: Yifeng
| Baixar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | HIGH TEMP BLACK |
| INSULATOR: | HIGH TEMP BLACK |
| SHUNT TERMINAL: | PHOSPHOR BRONZE T=0.20mm, G/F ON CONTACT AND SOLDER TAIL AREA, NICKEL OVERALL |
| TRANSFER SPRING: | PHOSPHOR BRONZE T=0.20mm,G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL OVERALL |
| SHELL: | PHOSPHOR BRONZE T=0.20mm, PLATING NI |
| RING SPRING 4: | PHOSPHOR BRONZE T=0.20mm, G/F ON CONTACT AREA, MATTE SN PLATING ON SOLDER TAIL AREA, NICKEL OVERALL |
| RING SPRING 3: | PHOSPHOR BRONZE T=0.20mm, G/F ON CONTACT AREA, MATTE SN PLATING ON SOLDER TAIL AREA, NICKEL OVERALL |
| TIP SPRING 2: | PHOSPHOR BRONZE T=0.20mm, G/F ON CONTACT AREA, MATTE SN PLATING ON SOLDER TAIL AREA, NICKEL OVERALL |
| EARTH SPRING 1: | PHOSPHOR BRONZE T=0.20mm, G/F ON CONTACT AREA, MATTE SN PLATING ON SOLDER TAIL AREA, NICKEL OVERALL |
| CURUENT RATING: | DC 0.5A MAX |
| VOLTAGE RATING: | DC 30V |
| CONTACT RESISTANCE: | 50mΩ MAX |
| INSULATION RESISTANCE: | 100mΩ MIN AT 500V DC |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500V AC FOR 1 MINUTE |
| INSERTION FORCE : | 3~30N |
| WITHDRAWAL FRCE: | 3~30N |
| OPERATING LIFE: | 5000 CYCLES MIN |
