| Quantidade de pedido mínimo: | 1 |
Sombra:

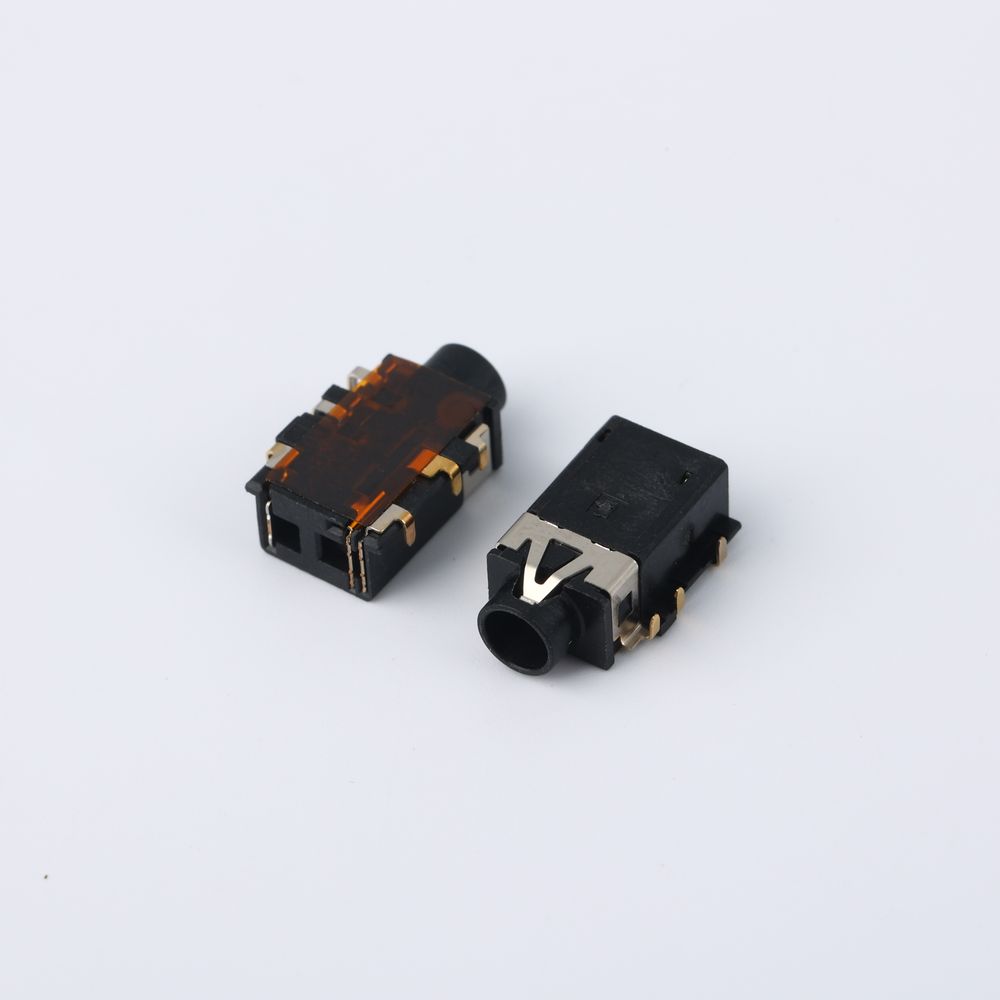

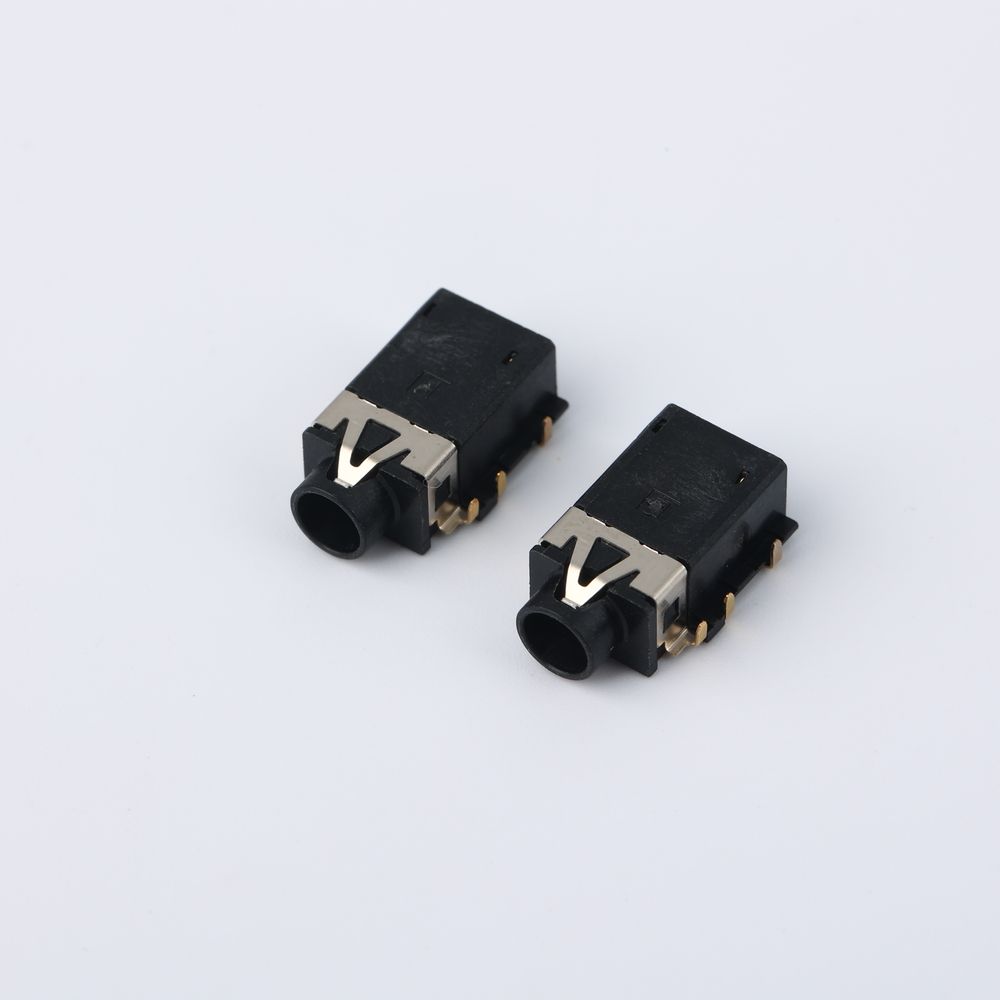

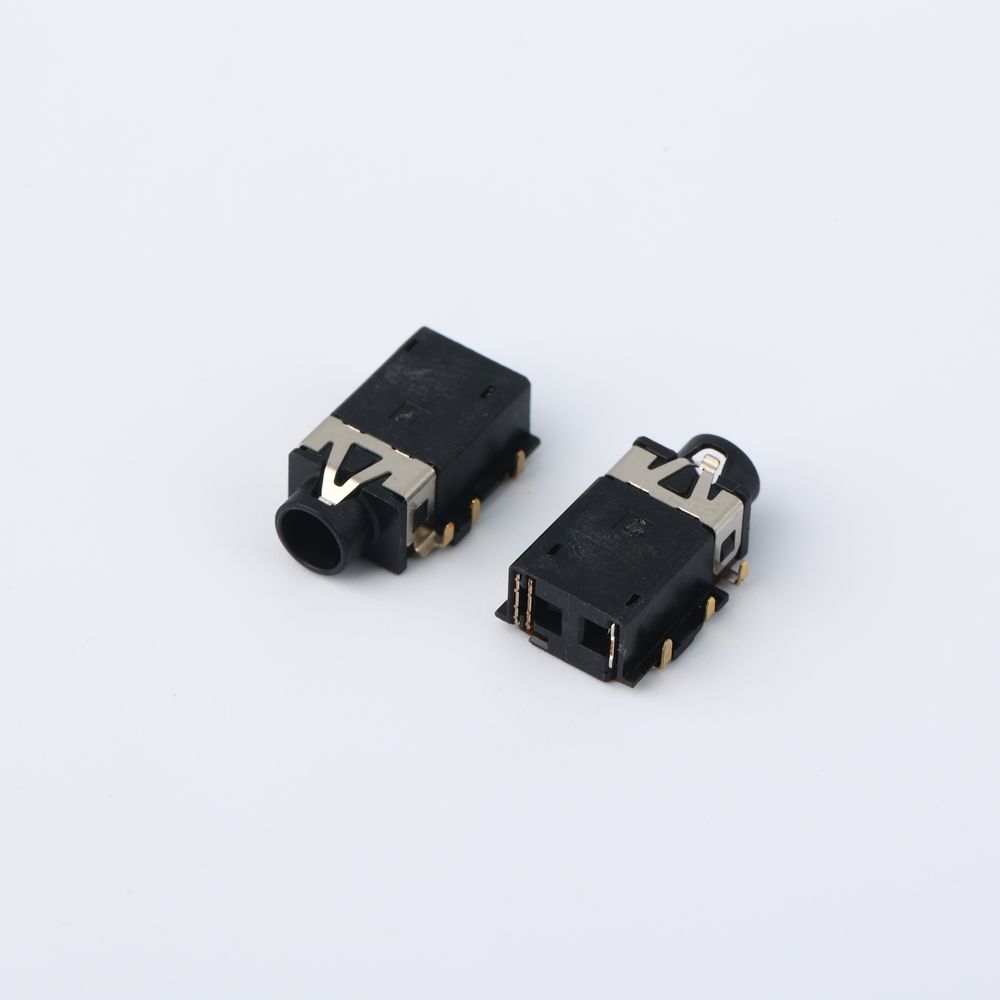

Modelo: AAPJ+3264P+AU02L ∅3.5mm phone Jack CH=-1.4mm
marca: Yifeng
| Baixar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | PA10T UL94V-0 BLACK |
| CONTACT-1: | C5210R T=0.2mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL UNDERPLATED |
| CONTACT-2: | C5210R T=0.2mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL UNDERPLATED |
| CONTACT-3: | C5210R T=0.2mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL UNDERPLATED |
| CONTACT-4: | C5210R T=0.2mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL UNDERPLATED |
| CONTACT-5: | C5210R T=0.2mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL UNDERPLATED |
| CONTACT-6: | C5210R T=0.2mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL UNDERPLATED |
| MOLDING: | PA10T UL94V-0 |
| MALAR: | CAPTON YELLOE |
| CURUENT RATING: | DC 1A MAX |
| VOLTAGE RATING: | DC 12V |
| CONTACT RESISTANCE: | 50mΩ MAX |
| INSULATION RESISTANCE: | 100mΩ MIN AT 500V DC |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500V AC FOR 1 MINUTE |
| INSERTION FORCE : | 5~22N (INITIAL), 4~22N (AFTER LIFE TEST) |
| WITHDRAWAL FRCE : | 5~20N (INITIAL), 4~20N (AFTER LIFE TEST) |
| OPERATING LIFE: | 5000 CYCLES MIN |
