| Quantidade de pedido mínimo: | 1 |
Sombra:

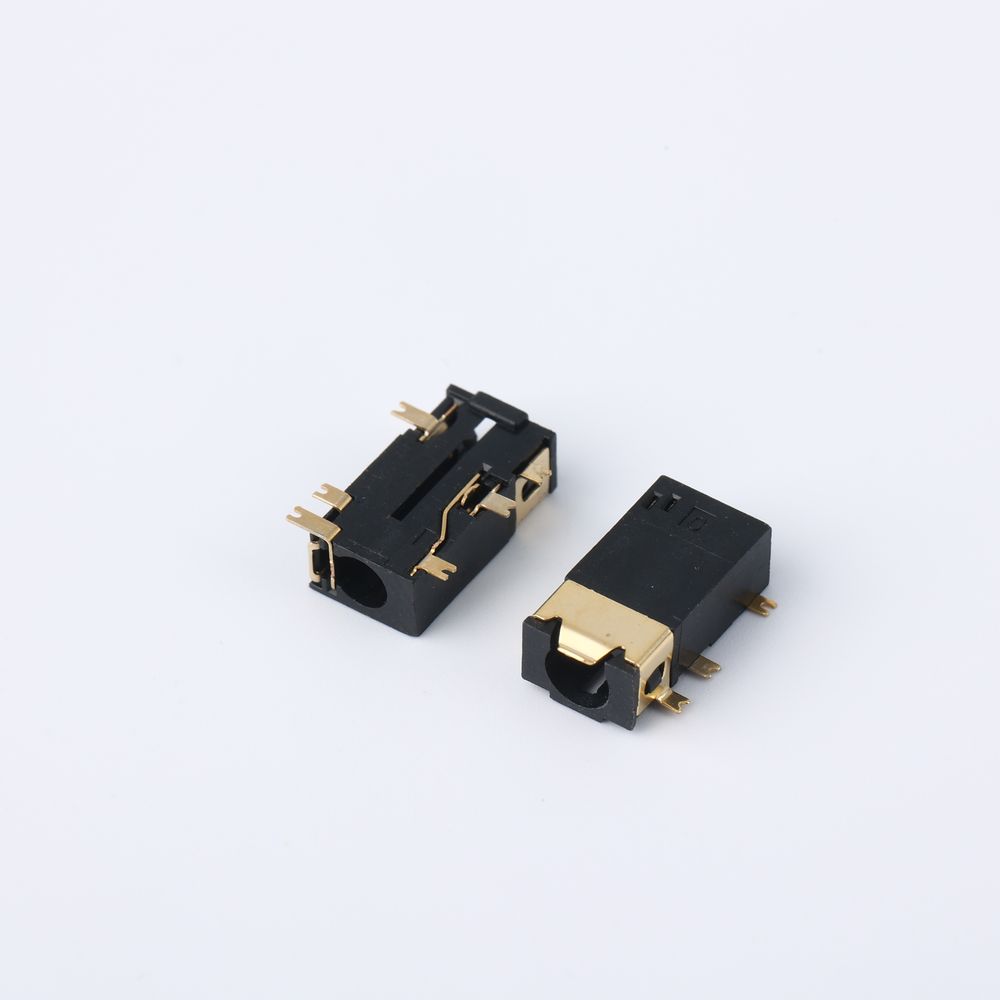

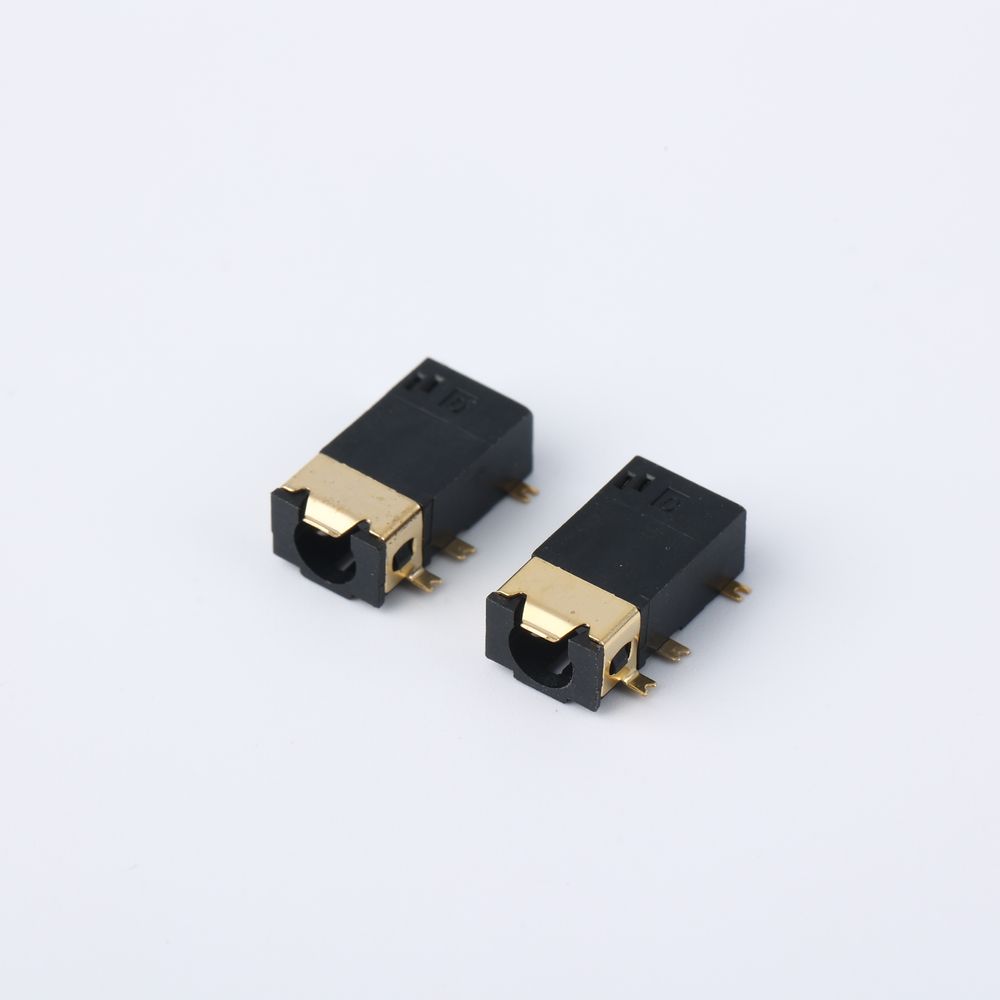

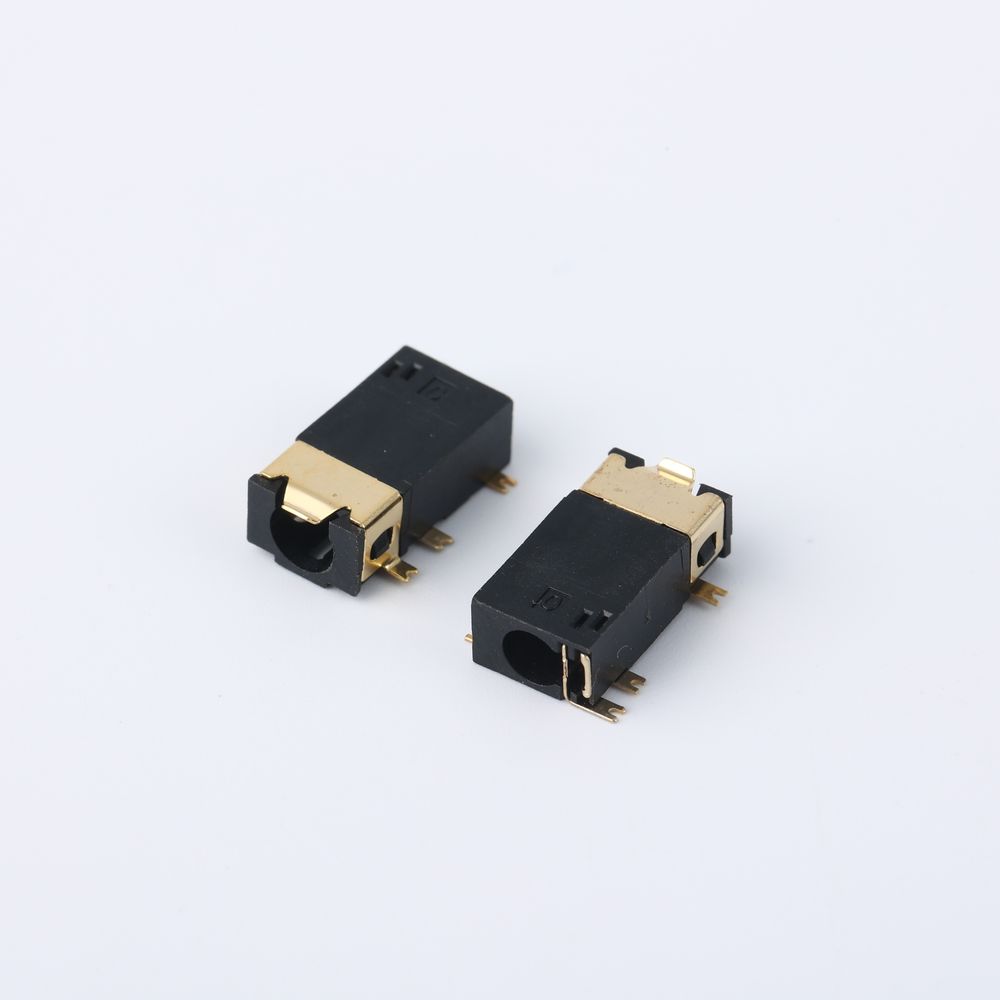

Modelo: AAPJ+3545-26L6G ∅3.5mm phone jack CH=-1.85
marca: Yifeng
| Baixar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | PAPT BLACK |
| TERMINAL: | PHOSPHOR BRONZE T=0.20, AG PLATED |
| TERMINAL: | PHOSPHOR BRONZE T=0.20, AG PLATED |
| TERMINAL: | PHOSPHOR BRONZE T=0.20, AG PLATED |
| TERMINAL: | PHOSPHOR BRONZE T=0.20, AG PLATED |
| TERMINAL: | PHOSPHOR BRONZE T=0.20, AG PLATED |
| TERMINAL: | PHOSPHOR BRONZE T=0.20, AG PLATED |
| CURUENT RATING: | 1 A |
| VOLTAGE RATING: | DC 12V |
| CONTACT RESISTANCE: | 30mΩ MAX INITIAL |
| INSULATION RESISTANCE: | 100mΩ MIN MEASURED BY 500V DC |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500V AC FOR 1 MINUTE |
| INSERTION FORCE : | 0.3~3.0kgf |
| WITHDRAWAL FRCE : | 0.3~3.0kgf |
| OPERATING LIFE: | 5000 CYCLES MIN |
